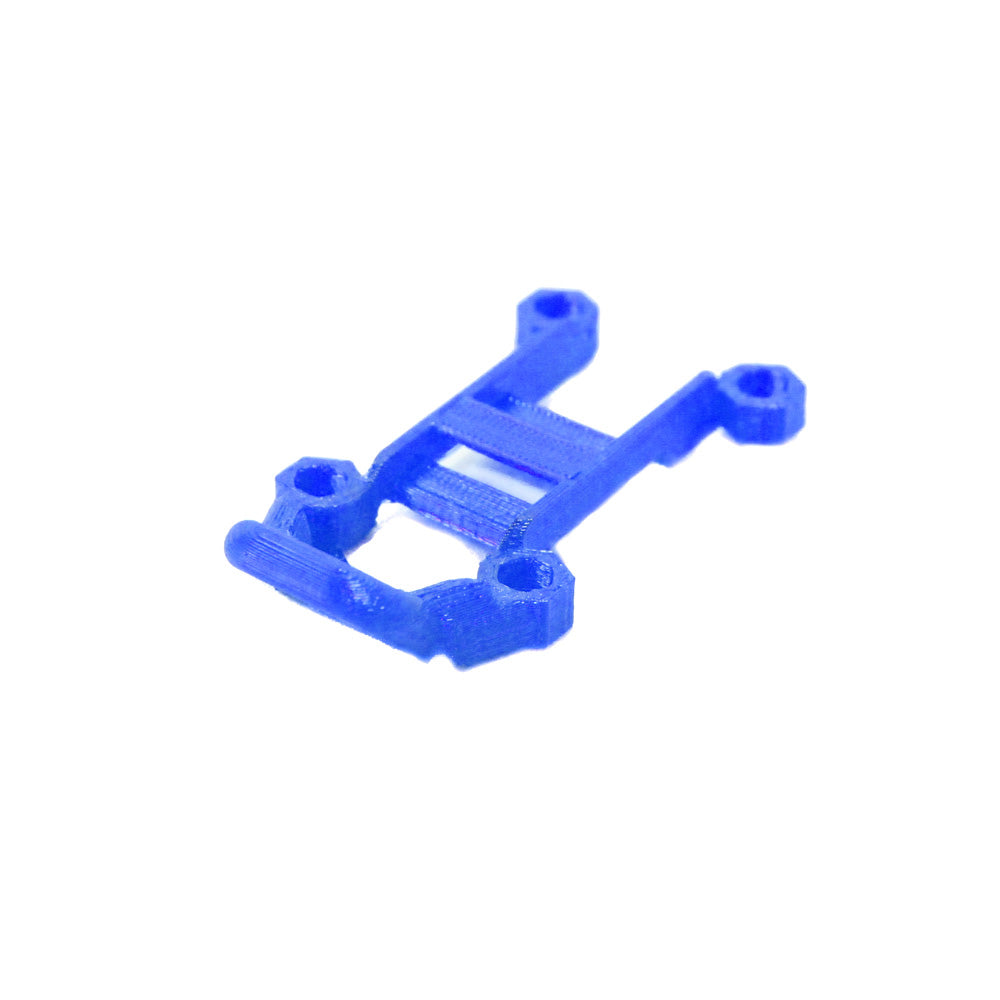

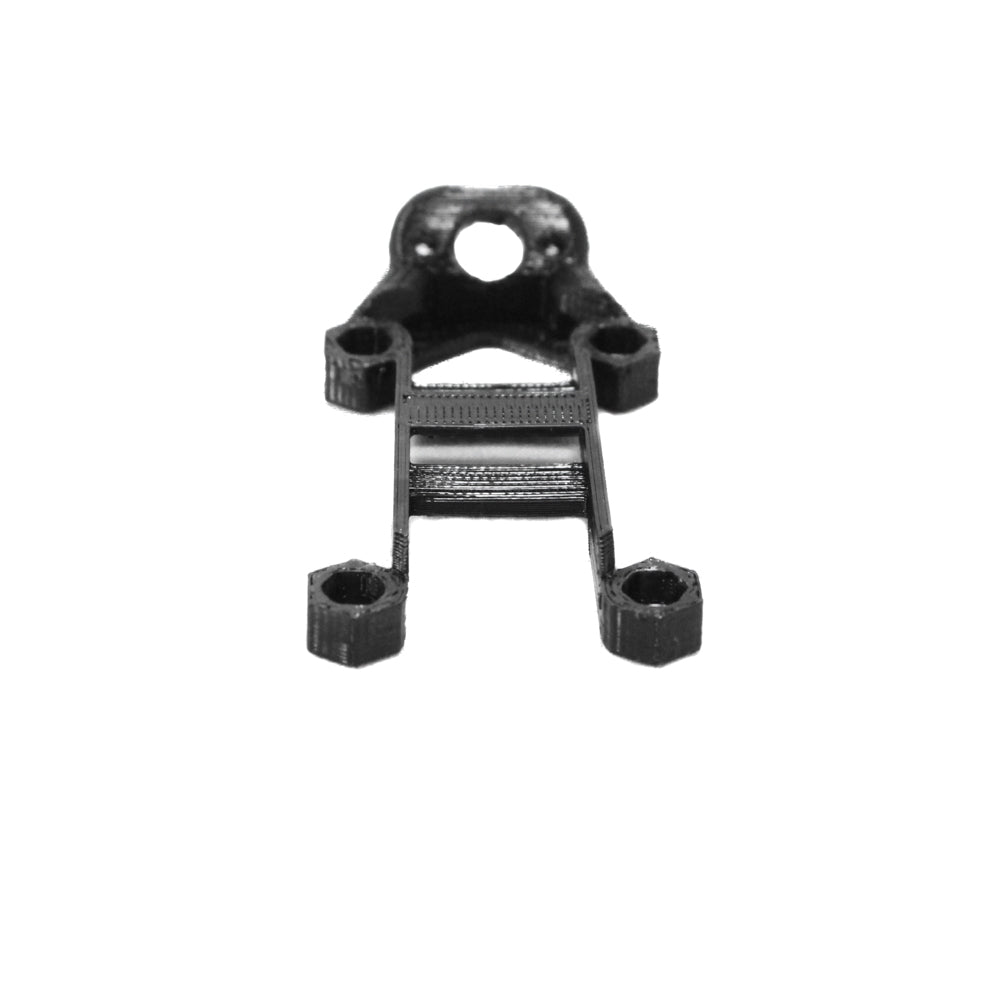

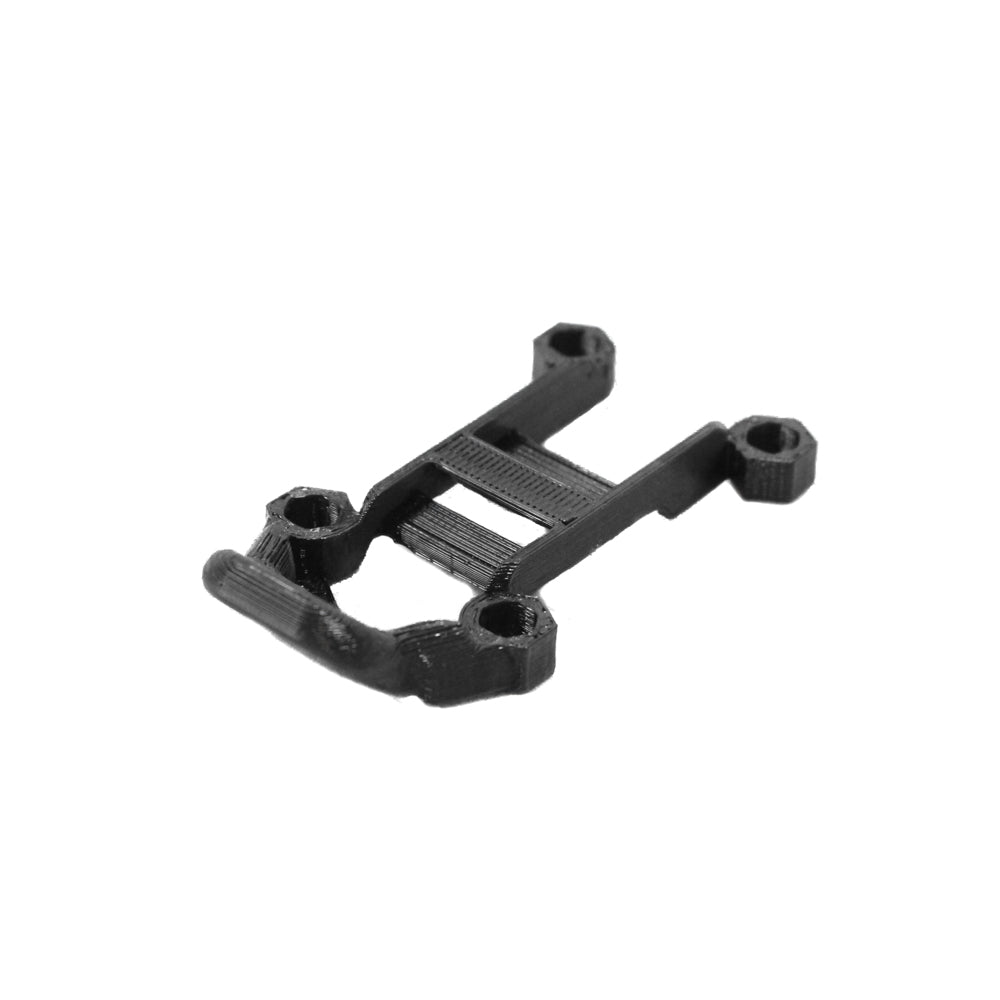

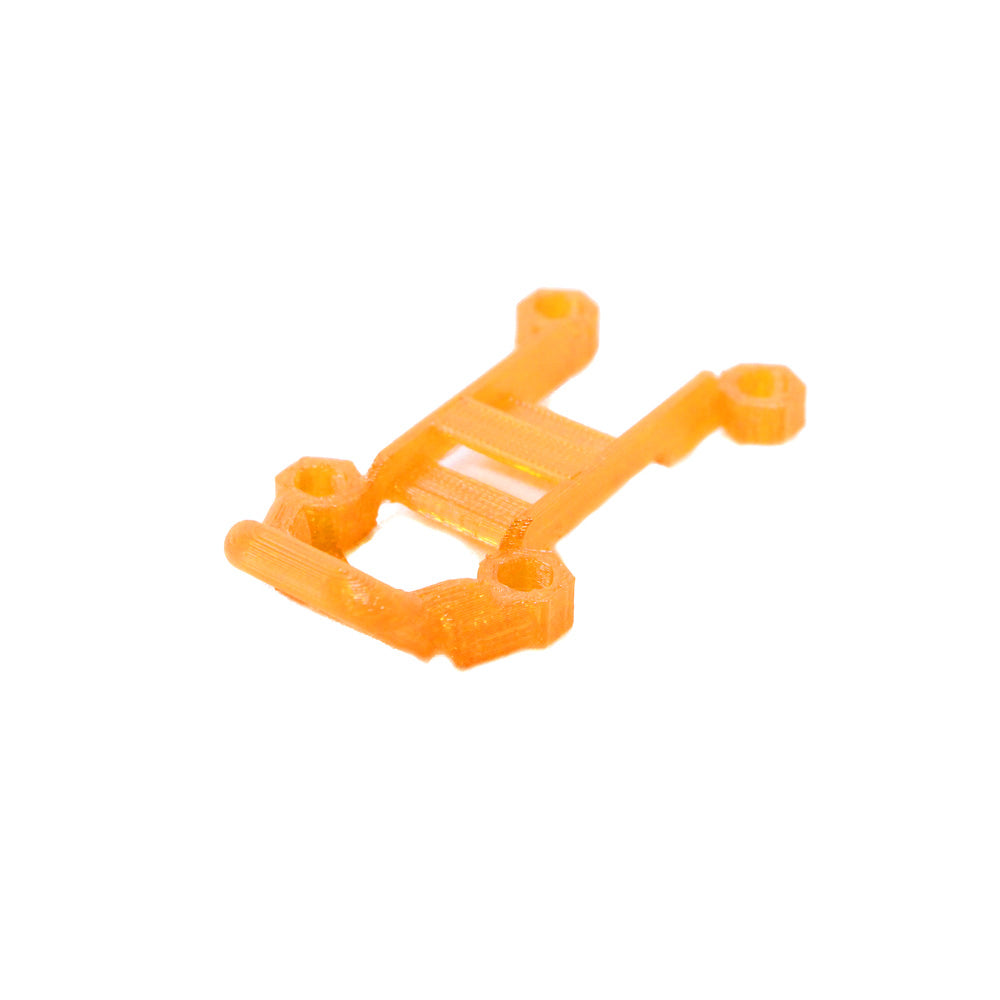

ImpulseRC Apex 5" Base Antenna Mount

ImpulseRC Apex Base 5" Antenna Mount is made to perfectly fit your drone and provide maximum usability.

Features:

Receiver Holder

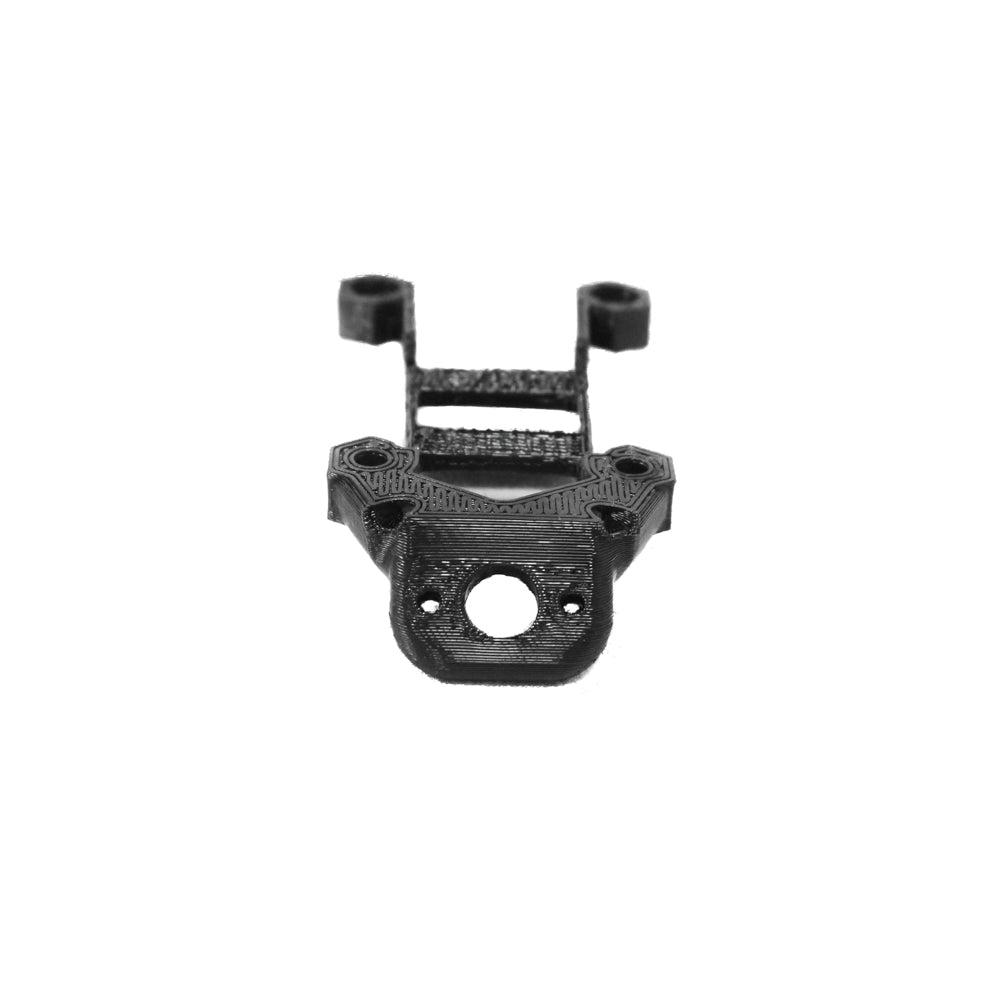

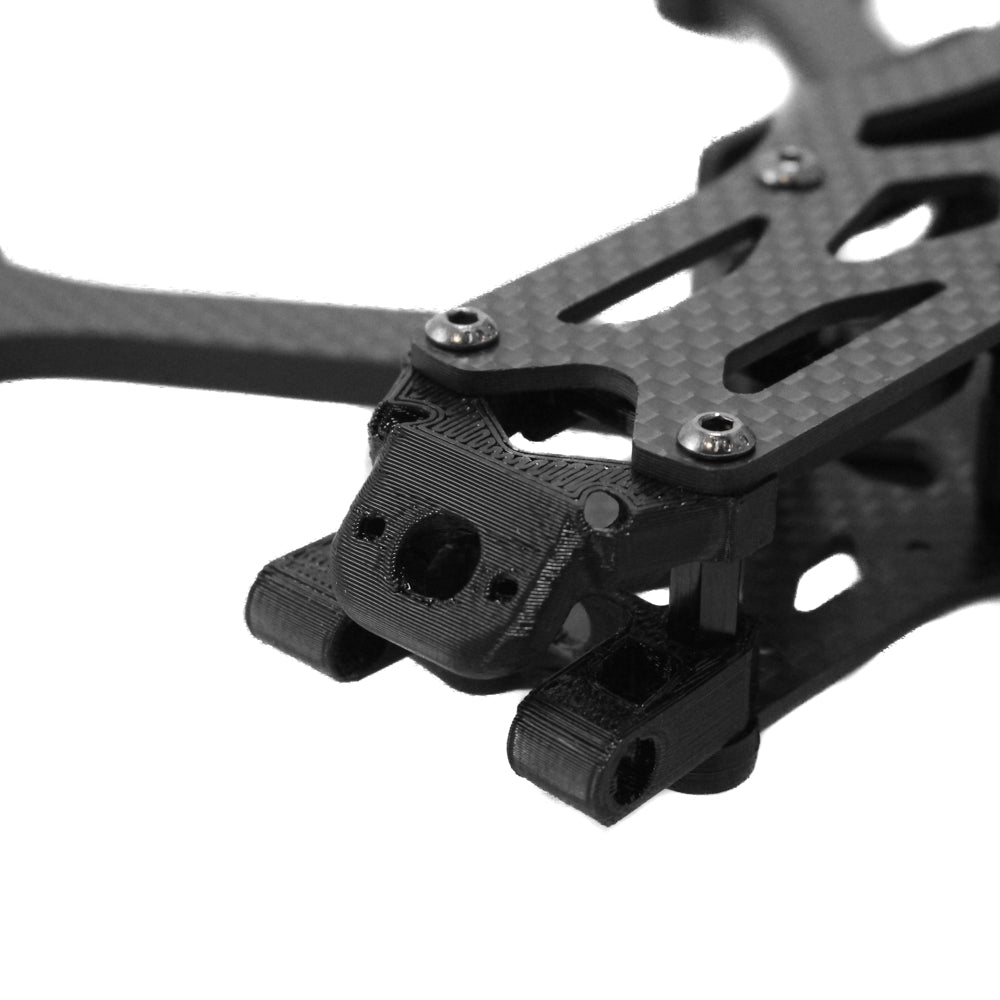

FPV Antenna Mount

Receiver Antenna

Battery Wire Holder

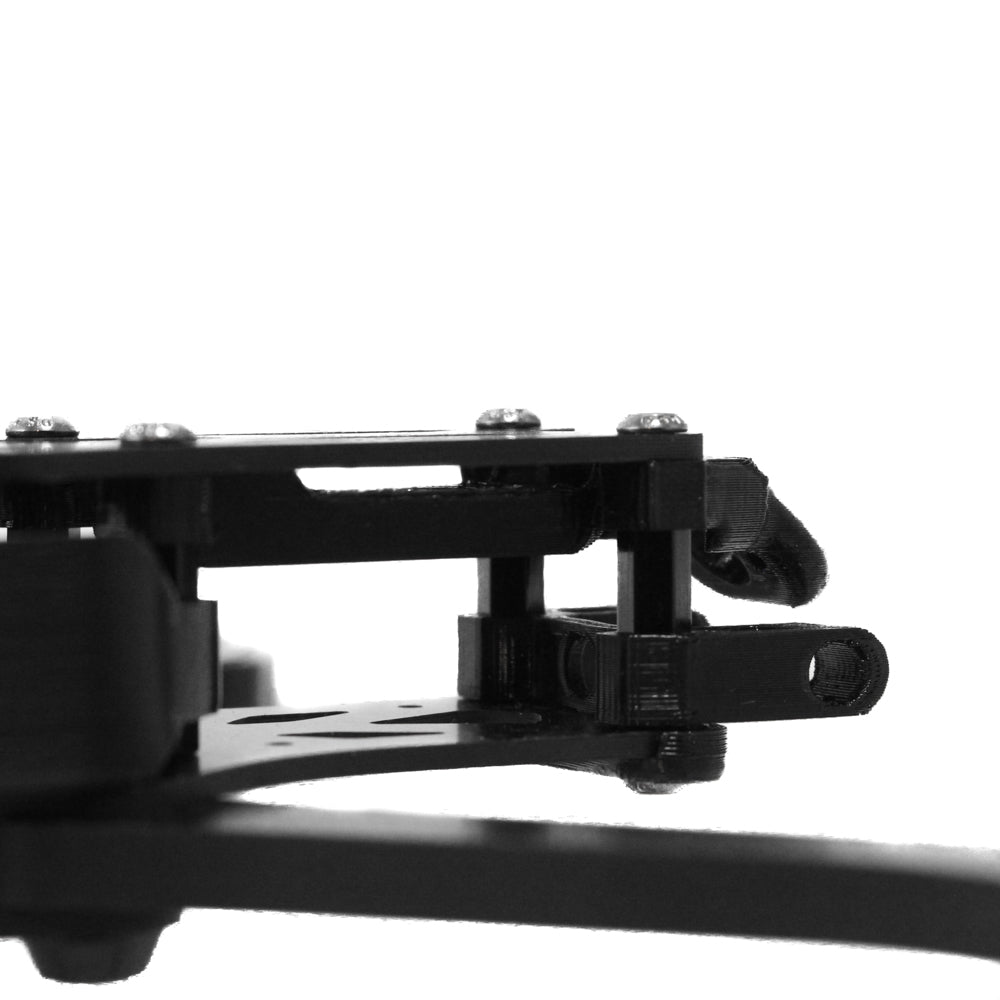

Secondary Battery Strap Holder

Specifications:

Weight: 2g

Length/Width/Height: 64x31x12.5mm

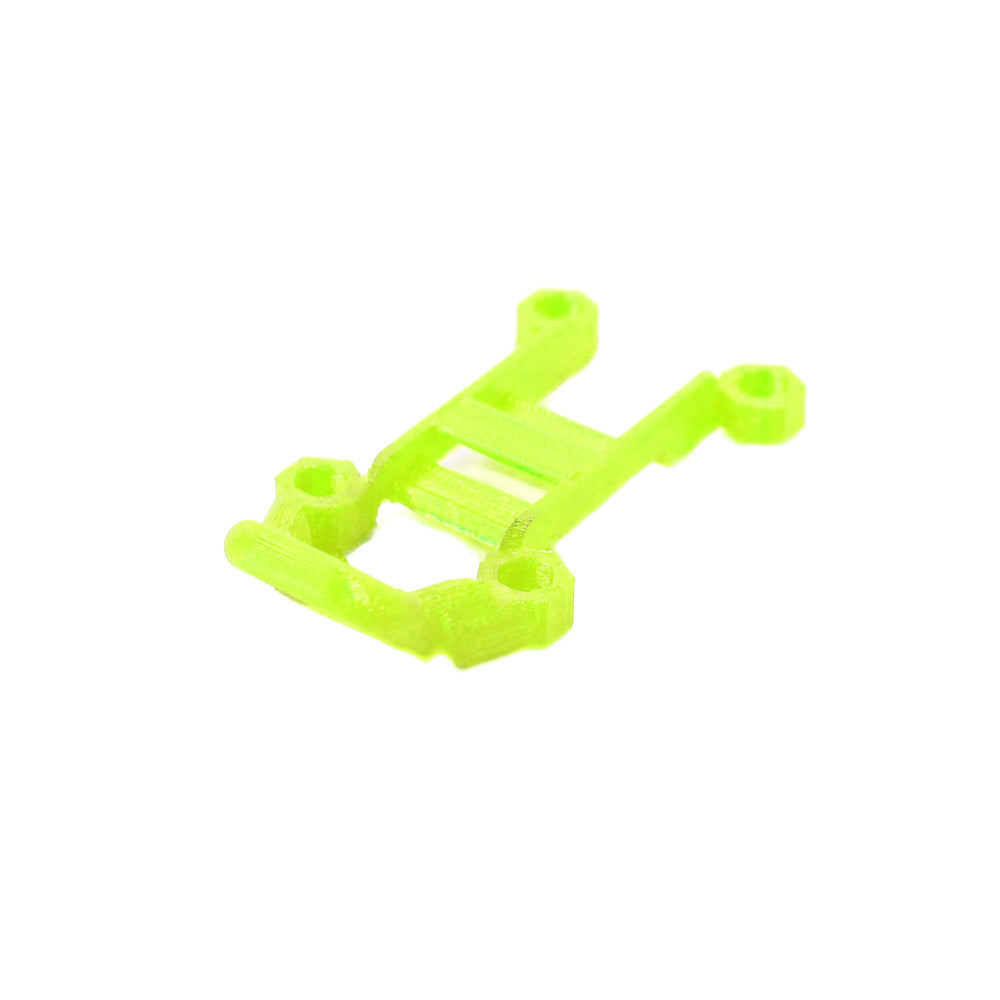

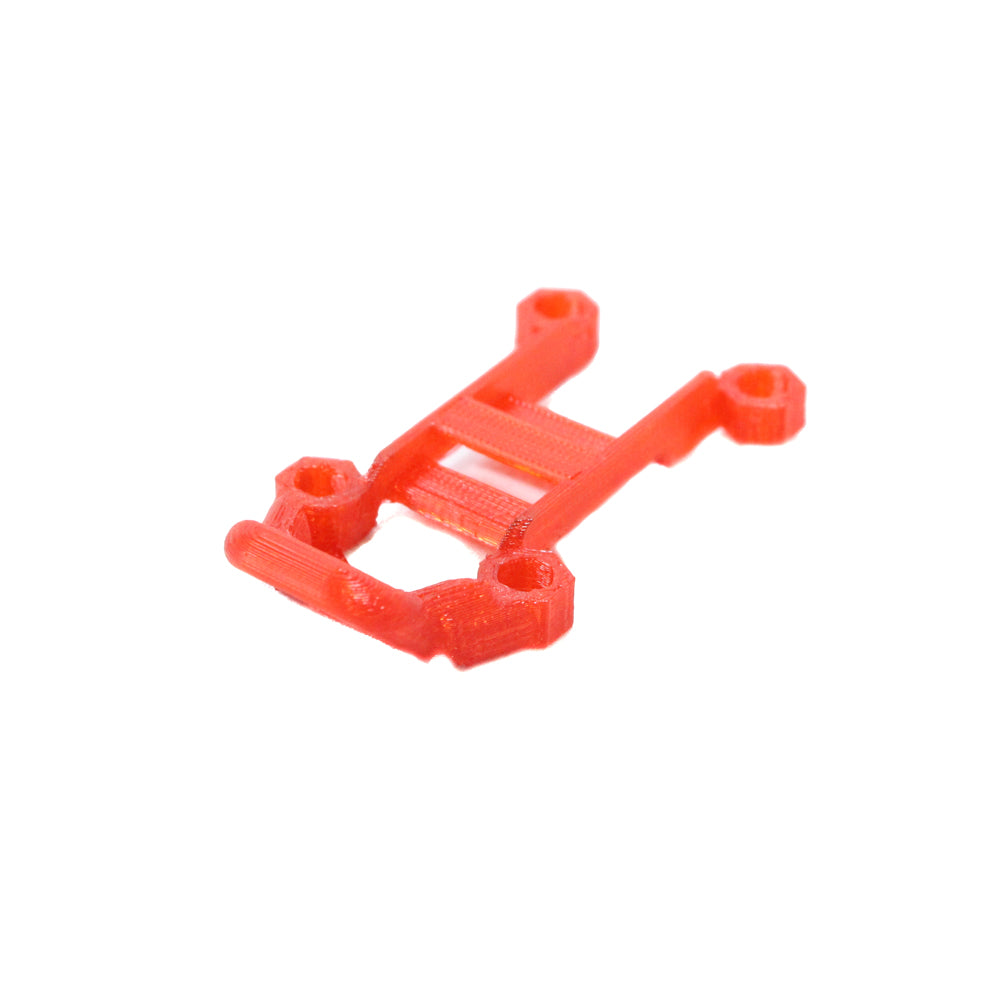

Color: Black, Red, Blue, Neon Yellow

Material: TPU (Thermoplastic Polyurethane)

Standoff Hole Diameter: ~5mm

FPV Antenna Hole Diameter: 6mm

FPV Antenna Screw Hole Diameter: 2mm

Maximum Receiver Width: 15.7mm

Receiver Antenna Tube Diameter: 3mm

Battery Hole Diameter: 10.5mm

Secondary Battery Strap Holder Width: 22mm

Secondary Battery Strap Holder Height: 3mm

Package Includes:

1 x Antenna Mount

Notes:

• Standoff hole size is developed to only fit manufacturer sizes. Contact us if you are unsure.
• Does not work with the original SMA Mount

• Make sure to position standoffs with the sharp corner outwards
